2 Channel 5V Relay Module with Optocoupler

57%

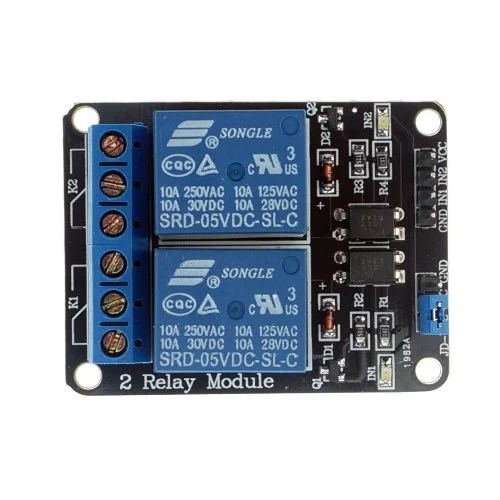

2 Channel 5V Relay Module with Optocoupler

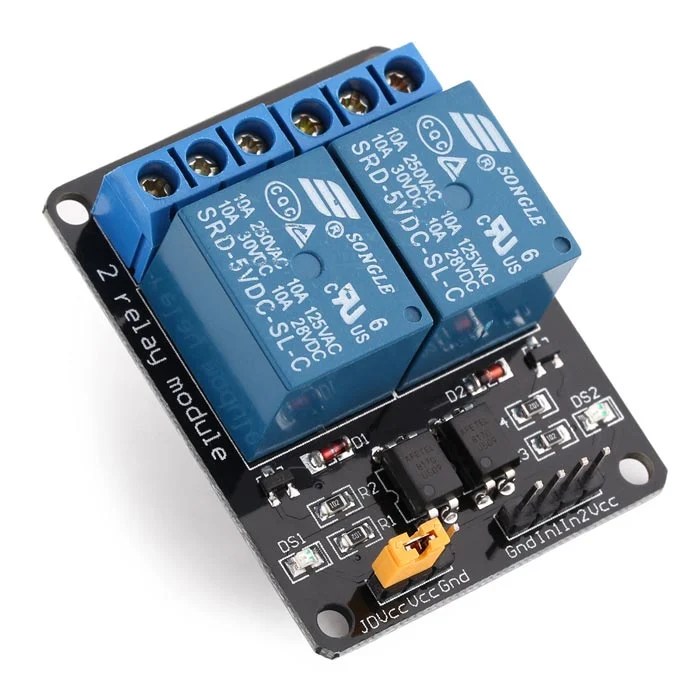

2 Channel 5V Relay Module with Optocoupler - Image 2
₹180.00 Original price was: ₹180.00.₹78.00Current price is: ₹78.00.
In Stock
Add to wishlist
In Stock
  1. Low Level Trigger Relay Module
  2. Two separate LEDs for On/Off indication of the Relay.
  3. Triggering input voltage 3.3V – 5V
  4. Two separate LEDs for On/Off indication of the Relay
  5. Triggering input voltage 3.3V – 5V 4)
  6. Back EMF protection
  7. Back EMF protection 2 LEDs to indicate when relays are ON.
  8. Works with logic level signals from 3.3V or 5V devices
  9. Opto isolation circuitry
  10. Module with diode current protection, short response time
  11. AC Control Voltage: 250V @max.10A
  12. DC Control Voltage: 30V @max. 10A

This product has been added to 1 people'scarts.

  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs, sent by klbtheme.com
  • Pick up at a klbtheme.com collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
SKU: 96417
Categories: , ,

Description

It is a 2 Channel 5V Relay Module with Optocoupler. This is a 2 Channel isolated 5V 10A relay module Optocoupler for Arduino PIC ARM. It can be used to control various appliances and other types of equipment with a large current. It can be controlled directly with 3.3V or 5V logic signals from a microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).

This relay has a 1×4 (2.54mm pitch) pin header for connecting power (5V and 0V), and for controlling the 2 relays.

The pins are marked on the PCB as:

  • GND – Connect 0V to this pin.
  • IN1 – Controls relay 1, active Low Relay will turn on when this input goes below about 2.0V
  • IN2 – Controls relay 2, active Low Relay will turn on when this input goes below about 2.0V
  • VCC – Connect 5V to this pin. Is used to power the optocouplers

Features of 2 Channel 5V Relay Module with Optocoupler :

  1. 2 LEDs to indicate when relays are ON.
  2. Works with logic level signals from 3.3V or 5V devices
  3. Opto isolation circuitry
  4. Module with diode current protection, short response time
  5. Around the board with 4 mounting holes, hole diameter 3. 1 mm, easy installation and fixing

Package Includes :

1 x 2 Channel isolated 5V 10A relay module with Optocoupler
