Dual DC 100V 100A Voltmeter Ammeter Without Shunt

45%
Dual DC 100V 100A Voltmeter Ammeter Without Shunt
Dual DC 100V 100A Voltmeter Ammeter Without Shunt - Image 2
  1. Dual DC 100V 100A Voltmeter Ammeter Without Shunt
  2. Dual DC 100V 100A Voltmeter Ammeter Without Shunt - Image 2
₹560.00 Original price was: ₹560.00.₹310.00Current price is: ₹310.00.
In Stock
Add to wishlist
In Stock
  1. Operating Voltage: 5V DC
  2. Current Consumption: <60mA
  3. Testing Voltage: 0-100V
  4. Testing Current: 1-100A
  5. Easy to read even in dim light

This product has been added to 1 people'scarts.

  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs, sent by klbtheme.com
  • Pick up at a klbtheme.com collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
SKU: 39856
Categories: , , , ,

Description

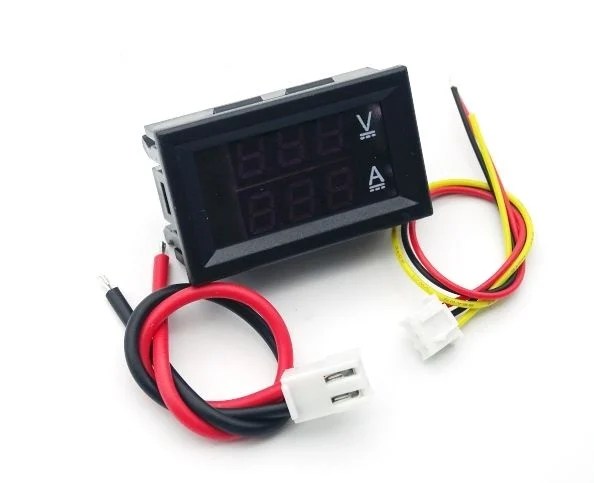

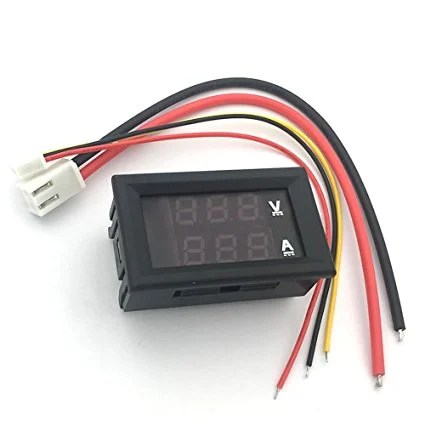

It is a Dual DC 100V 100A Voltmeter Ammeter Without Shunt. This is 0.28″ 5 Wires Red Led Digital Dual DC 100V 100A Ammeter  Voltmeter. This meter will measure up to 100 VDC with a 0.1-volt resolution.

One thing to note is, this meter has 2 wiring harnesses. One harness is to provide power for the meters, that’s the 2 poles with a RED and a BLACK lead. Small size, portable, the magnitudes of voltage and current are displayed on the same screen at the same time.

This can be supplied anywhere from 6 volts DC up to 30 VDC. This is a separate power supply that is isolated from the source, it is possible to use the same supply but it seems to affect the amp meter reading. The 3 wire harness is used for a ground that connects directly to the battery or supply ground of the load.

Features of Dual DC 100V 100A Voltmeter Ammeter Without Shunt:

  1. It measures up to 100V and 100A DC.
  2. Very handy and small in size.
  3. It requires a power supply of 5V.
  4. 100% Brand new and high quality.

Package Includes:

1 x Dual LED Panel Ampere Voltage Meter.
