Infrared Obstacle Avoidance IR Sensor Module
- Detection distance: 2 ~ 30cm
- Detection angle: 35 °
- Comparator chip: LM393
- 3mm screw holes for easy mounting
- Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
- Including shipping costs, sent by klbtheme.com
- Pick up at a klbtheme.com collection point is possible
- 30 days to change your mind and free returns
- Day and night customer service
Description

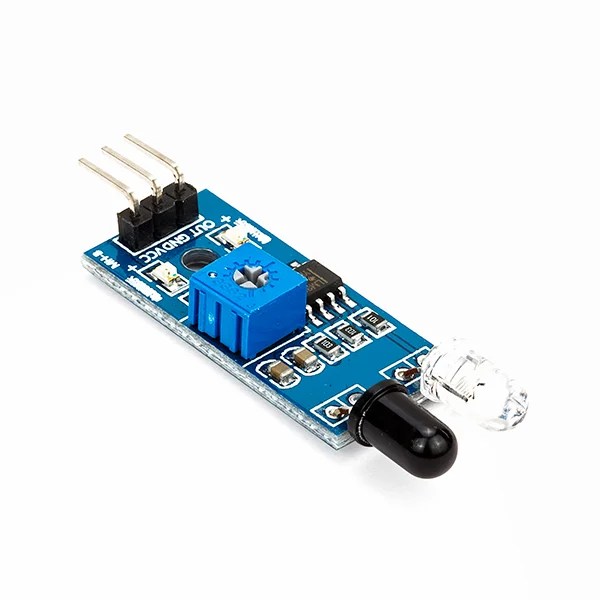

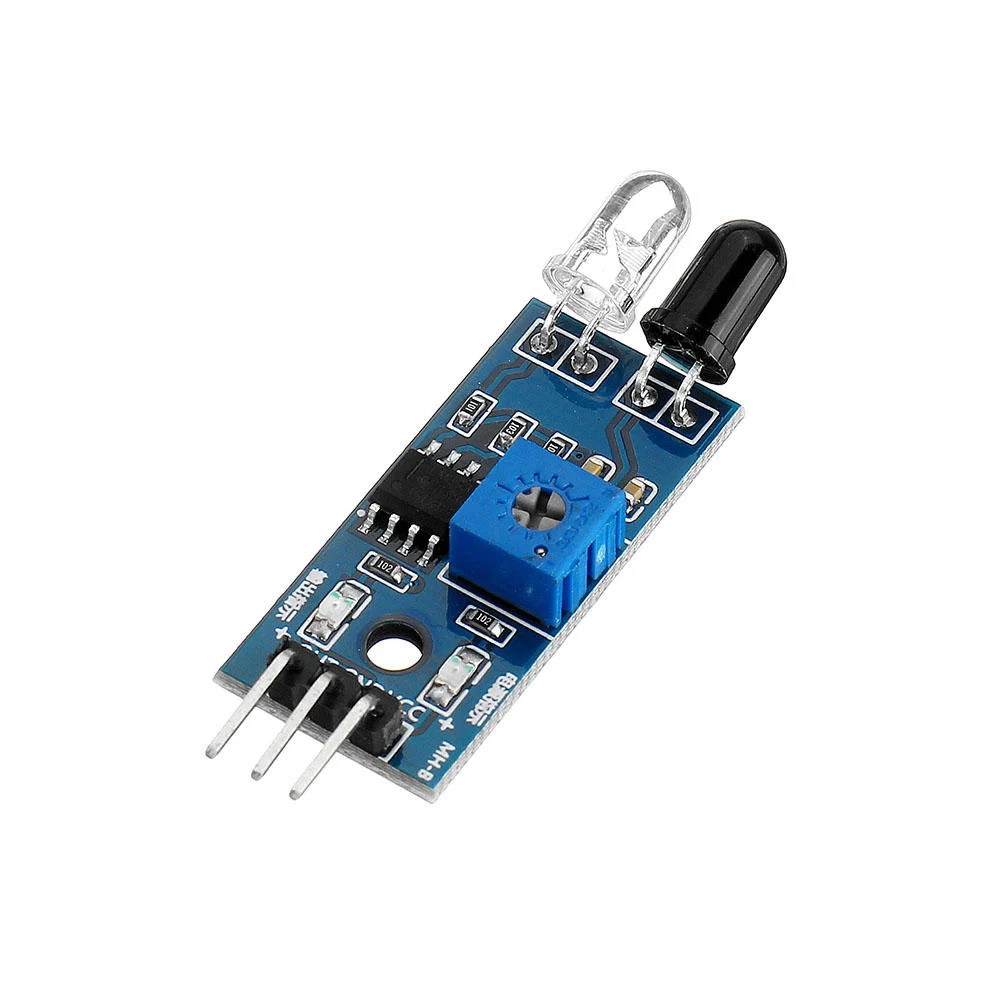

It is a Infrared Obstacle Avoidance IR Sensor Module. Infrared Obstacle Avoidance IR Sensor Module (Active Low) has a pair of infrared transmitting and receiving tubes. When the transmitted light waves are reflected back, the reflected IR waves will be received by the receiver tube. The onboard comparator circuitry does the processing and the green indicator LED comes to life.
The module features a 3 wire interface with Vcc, GND, and an OUTPUT pin on its tail. It works fine with 3.3 to 5V levels. Upon hindrance/reflectance, the output pin gives out a digital signal (a low-level signal). The onboard preset helps to fine-tune the range of operation, the effective distance range is 2cm to 80cm.
Features of Infrared Obstacle Avoidance IR Sensor Module:
- Easy to assemble and use
- Onboard detection indication
- The effective distance range of 2cm to 80cm
- A preset knob to fine-tune distance range
- If there is an obstacle, the indicator lights on the circuit board.
Package Includes :
1 x Infrared Obstacle Avoidance IR Sensor Module
