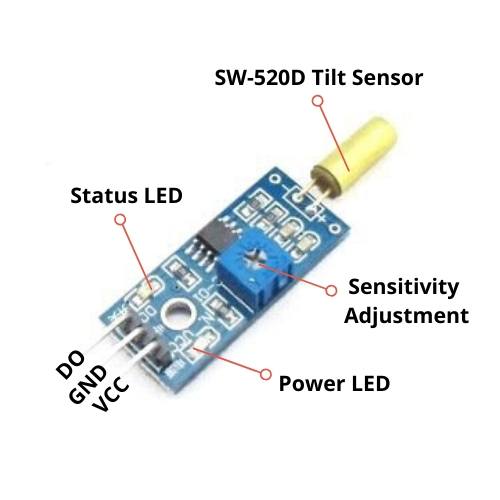

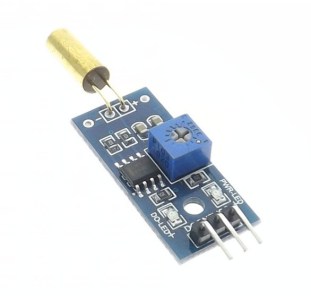

SW 520 Tilt Vibration Sensor Module

54%
SW 520 Tilt Vibration Sensor Module
SW 520 Tilt Vibration Sensor Module - Image 2
₹150.00 Original price was: ₹150.00.₹70.00Current price is: ₹70.00.
In Stock
Add to wishlist
In Stock
  • Product Type: SW-520 Tilt Sensor Module
  • Comparator IC used: LM393
  • Output type: digital
  • PCB dimension: 32mm x 14mm
  • Package contains: 1 x SW-520 Tilt Vibration Sensor Module
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs, sent by klbtheme.com
  • Pick up at a klbtheme.com collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
SKU: 90247
Categories: , ,

Description

It is a SW 520 Tilt Vibration Sensor Module. SW-520 tilt sensor module detects the planner shift and orientation of an object (upright or not). It has 2 balls inside the sensor that makes the closed-circuit when it is upright otherwise the circuit remains open. This sensor is a very low cost, robust, easy installation and minimum external components required, these all features make the sensor perfect selection for DIY with Arduino and other controllers.

Features of SW 520 Tilt Vibration Sensor Module:

  • Small size, simple to use and easy installation
  • Digital output
  • Long lifeline
  • LED indication when the switch is on
  • Can work on low voltage
  • Easy interface with Arduino and other controllers

Specification

  • Voltage supply range: 3.3V to 5V
  • Maximum output current: 15mA
  • Conductive time: 2ms
  • Operating temperature range: 0℃ to +80℃
