UNO Proto Shield prototype expansion board with SYB-170 mini breadboard

58%

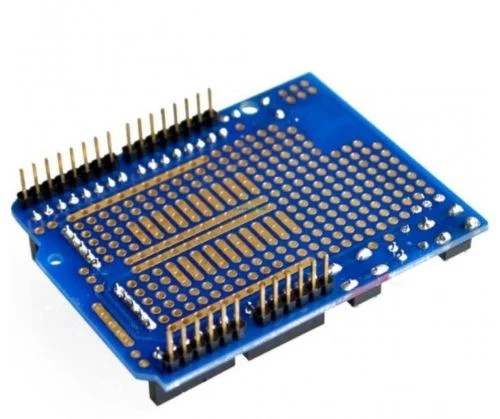

UNO Proto Shield prototype expansion board with SYB-170 mini breadboard

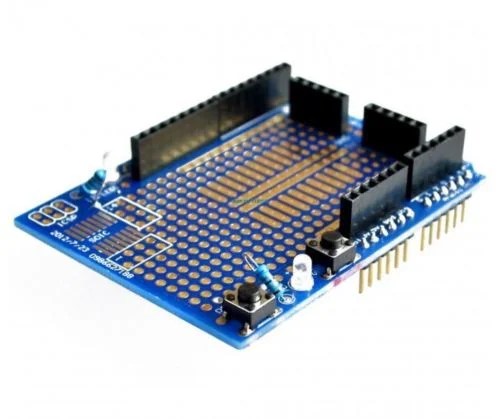

UNO Proto Shield prototype expansion board with SYB-170 mini breadboard - Image 2

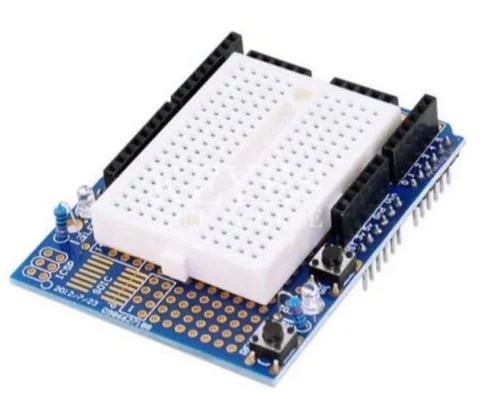

UNO Proto Shield prototype expansion board with SYB-170 mini breadboard - Image 3
₹200.00 Original price was: ₹200.00.₹85.00Current price is: ₹85.00.
In Stock
Add to wishlist
In Stock
  1. It has a nice standard 0.1″x0.1″ prototyping grid with big pads
  2. Comes with Stacking headers and plain header, choose whichever you want when soldering together
  3. An IC pattern for adding DIP ICs up to 20 pins
  4. Power rails down the middle and sides
  5. A reset button and an extra general use button
  6. Two 3mm general use LEDs, red and green, as well as 2 matching resistors
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs, sent by klbtheme.com
  • Pick up at a klbtheme.com collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
SKU: 83190
Categories: , , , ,

Description

🚀 Elevate Your Prototyping Experience with Our UNO Proto Shield Expansion Board!

Unlock the full potential of your Arduino UNO with our Proto Shield expansion board, complete with a SYB-170 mini breadboard.

Seamlessly integrating into your projects, this versatile shield offers unparalleled functionality and flexibility.

Key Features:

  1. UNO Compatibility: Specifically designed for use with Arduino UNO boards, ensuring perfect compatibility and ease of use.
  2. Prototype Expansion: Expand your prototyping capabilities with ample space provided by the included SYB-170 mini breadboard.
  3. Versatile Connectivity: Access all digital and analog pins of the Arduino UNO, allowing for seamless integration of sensors, actuators, and more.
  4. Robust Construction: High-quality materials ensure durability and reliability, making it ideal for both hobbyists and professionals.
  5. Easy to Use: Plug-and-play design allows for quick setup and prototyping, saving you time and effort.

Ready to elevate your prototyping endeavors? Order our UNO Proto Shield expansion board with SYB-170 mini breadboard now!  TechnoSam. [Order Now][Learn More]

Don’t miss out on this opportunity to streamline your prototyping process.

Get your hands on our UNO Proto Shield expansion board with SYB-170 mini breadboard now!

Technical Specifications: UNO Proto Shield Prototype Expansion Board with SYB-170 Mini Breadboard

  1. Compatibility:
    • Designed for use with Arduino UNO and compatible boards.
  2. Mini Breadboard:
    • Model: SYB-170
    • Dimensions: 45mm x 35mm
    • Tie-points: 170
  3. Shield Features:
    • Type: Prototype expansion board with mini breadboard
    • Material: High-quality FR-4 fiberglass
    • Pin Compatibility: Provides access to all digital and analog pins of the Arduino UNO board.
  4. Expansion Options:
    • Mini Breadboard Integration: Includes SYB-170 mini breadboard for prototyping and component connections.
    • Proto Area: Offers additional prototyping space for custom circuit design and development.
  5. Connectivity:
    • Digital Pins: Access to all digital pins of the Arduino UNO board.
    • Analog Pins: Access to all analog pins of the Arduino UNO board.
    • Power Pins: Dedicated power pins for +5V and GND connections.
  6. Construction:
    • PCB Thickness: Standard thickness for durability and reliability.
    • Solder Mask: Green solder mask with white silk-screened component labels.
    • Component Quality: High-quality components ensure stability and performance.
  7. Dimensions:
    • Shield Dimensions: Designed to fit the form factor of the Arduino UNO board.
    • Mini Breadboard Dimensions: 45mm x 35mm.
  8. Weight:
    • Lightweight design for easy handling and portability.

Features :

  1. It has a nice standard 0.1″x0.1″ prototyping grid with big pads
  2. Comes with Stacking headers and plain header, choose whichever you want when soldering together
  3. An IC pattern for adding DIP ICs up to 20 pins
  4. Power rails down the middle and sides
  5. A reset button and an extra general use button
  6. Two 3mm general use LEDs, red and green, as well as 2 matching resistors
  7. A pass-thru ICSP stacking header so you can stack any kind of shield on top, and/or use an AVR programmer
  8. A surface-mount chip area for up to 14 SOIC size parts
  9. Compatible with tiny breadboards
  10. Every pin is brought out!
  11. Gold plated pads
  12. 2 x 0.1uF capacitors on either side for extra power stability

Get latest Sensors and Modules for your project Visit our collection here.

Package Includes :

1 x UNO Proto Shield Prototype Expansion Board with SYB-170 Mini Breadboard
