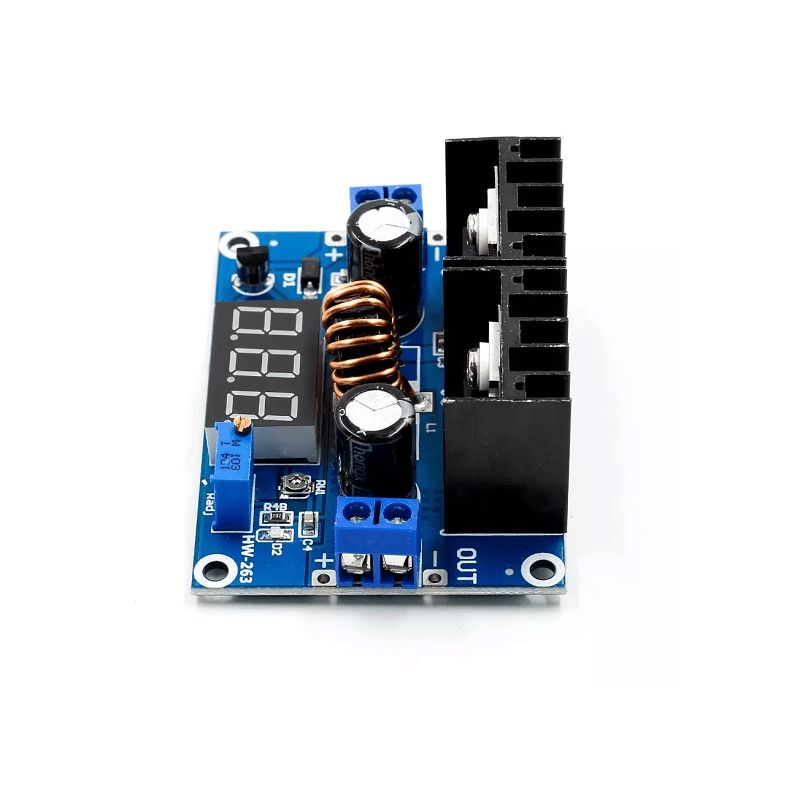

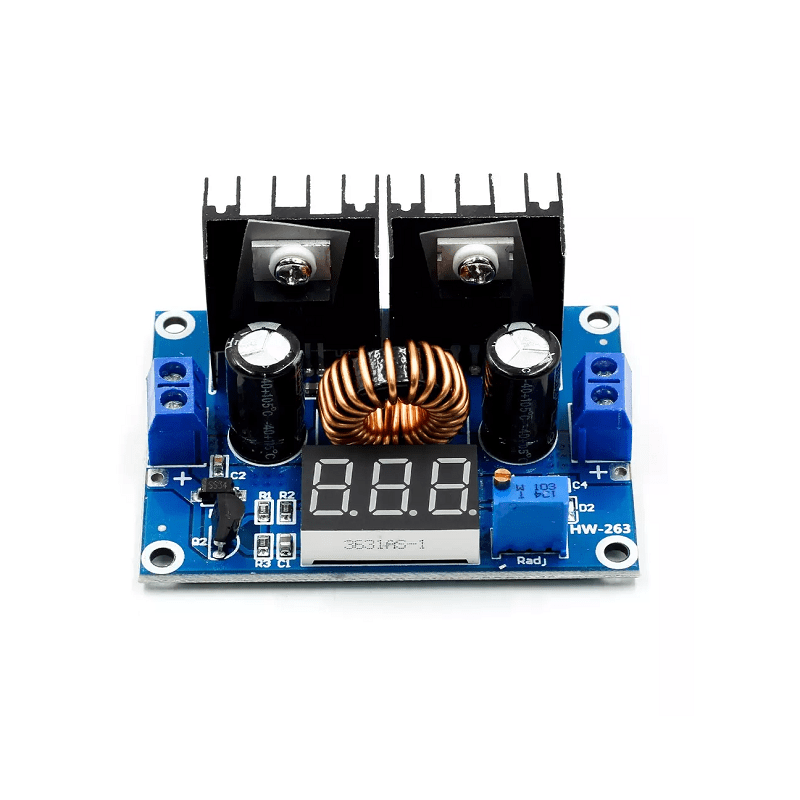

XH-M404 DC 4-40V 8A Voltage Regulator Module Digital PWM Adjustabl DC-DC Step Down Voltage Regulator DC XL4016E1

67%
XH-M404 DC 4-40V 8A Voltage Regulator Module Digital PWM Adjustabl DC-DC Step Down Voltage Regulator DC XL4016E1
XH-M404 DC 4-40V 8A Voltage Regulator Module Digital PWM Adjustabl DC-DC Step Down Voltage Regulator DC XL4016E1 - Image 2
₹760.00 Original price was: ₹760.00.₹255.00Current price is: ₹255.00.
Out of stock
Add to wishlist
Out of stock
  1. Input Voltage: 8-36V DC
  2. Output Voltage: 1.25-35V DC
  3. Efficiency: 96%
  4. Maximum Power: 200W
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs, sent by klbtheme.com
  • Pick up at a klbtheme.com collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
SKU: 52987
Categories: , , , , ,

Description

It is a XH-M404 DC 4-40V 8A Voltage Regulator Module Digital PWM Adjustabl DC-DC Step Down Voltage Regulator DC XL4016E1.This XL4016E1 Step-Down Power Supply Module with voltage rating 4-40VDC to 1.25-36VDC.This module is rated for a maximum power of 200W. The output current for the module can be increased to 8A with the addition of an external fan onto the heatsinks to cool the IC.

Features of XH-M404 DC 4-40V 8A Voltage Regulator Module Digital PWM Adjustabl DC-DC Step Down Voltage Regulator DC XL4016E1:

  1. Adjustment method: first correct input power (between 4-40V) then multimeter to monitor the output voltage and adjust potentiometer (usually clockwise turn boost, buck turn counterclockwise),
  2. Input: IN+ input positive IN- input negative
  3. Output: OUT+ output positive OUT- output negative
  4. Static power consumption is only about 6mA.
  5. Connection: Welding, plus pin can be directly soldered after the PCB.
  6. Short circuit protection: current limiting, thermal protection, self-recovery.
  7. Non-isolated step-down (BUCK) switching regulator.
  8. Short circuit protection: Current limiting, self-recovery
  9. Potentiometer adjustment direction is as Clockwise (increase) and Anti-clockwise (decrease)
  10. Non-synchronous rectification

Package Includes:

1 x XH-M404 DC 4-40V 8A Voltage Regulator Module Digital PWM Adjustable DC-DC Step Down Voltage Regulator DC XL4016E1
